R-MER CLAD
R-MER CLAD is a trapezoidal metal cladding system engineered for speed and versatility across industrial, commercial, and residential projects, delivering watertight protection in single skin or twin skin insulated configurations.

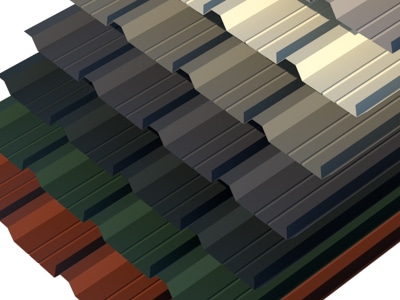

With rapid installation in both refurbishment and new build applications. Available in comprehensive colour ranges with horizontal or vertical orientation for complete design flexibility.
Material specification
Roll-formed galvanised steel · EN 10346 · gauge 1.00–3.00mm.
Coating options
Plastisol 200µm (EN 13523-1, wear-resistant finish) or Ultra 55µm (UV resistance category RUV4, guaranteed minimum corrosion resistance).
Fire performance
Reaction-to-fire C-s2,d0 (HPS / Plastisol) or A2-s1,d0 (all other coatings).
Why specify R-MER CLAD?

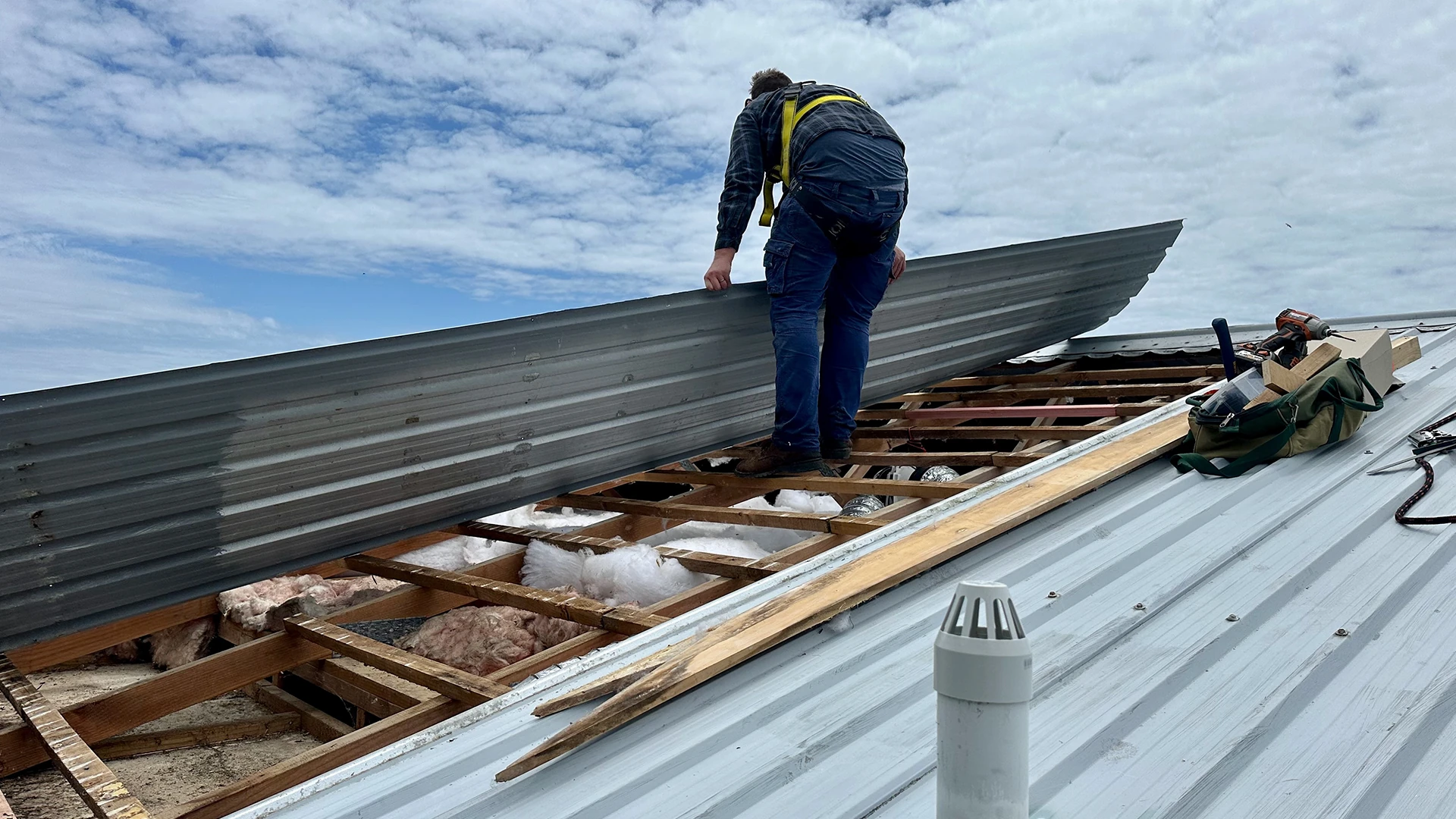

Efficient installation
Available in single-skin and twin-skin configurations, allowing the system to be specified across a range of construction methods and project requirements.

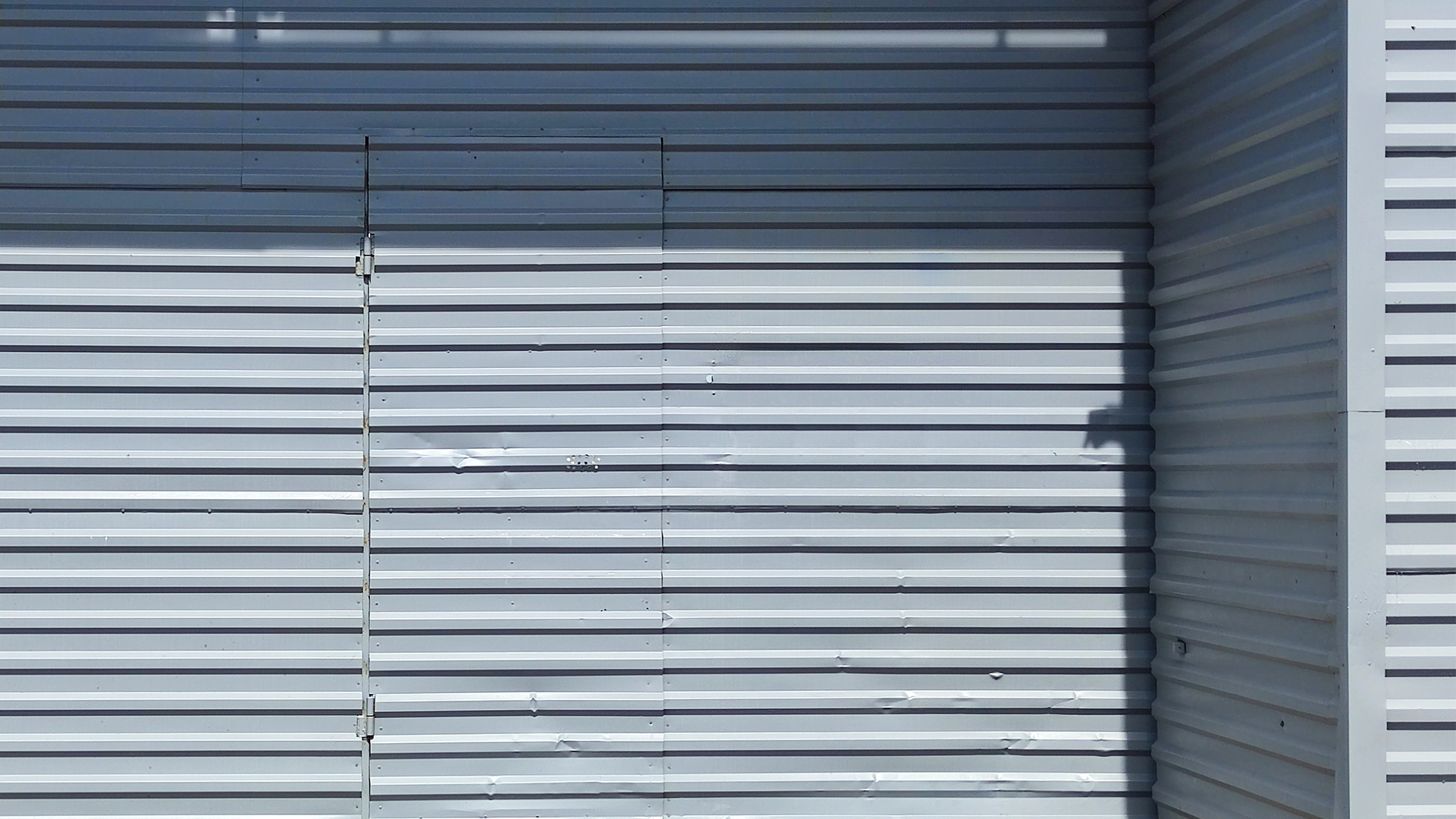

Multi-application system

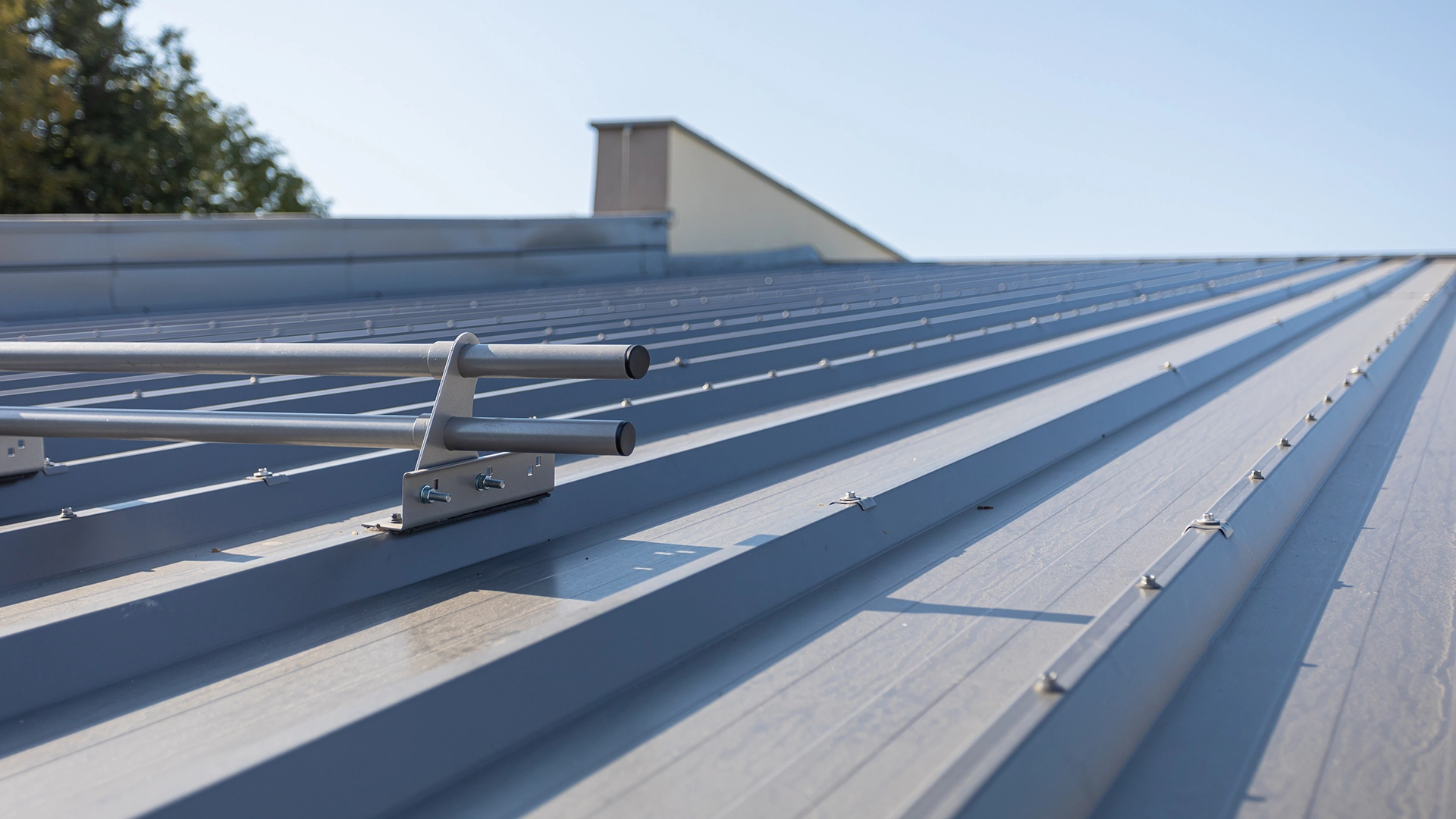

Suitable for both roof and wall installations, providing a coordinated metal envelope using compatible profiles and detailing.

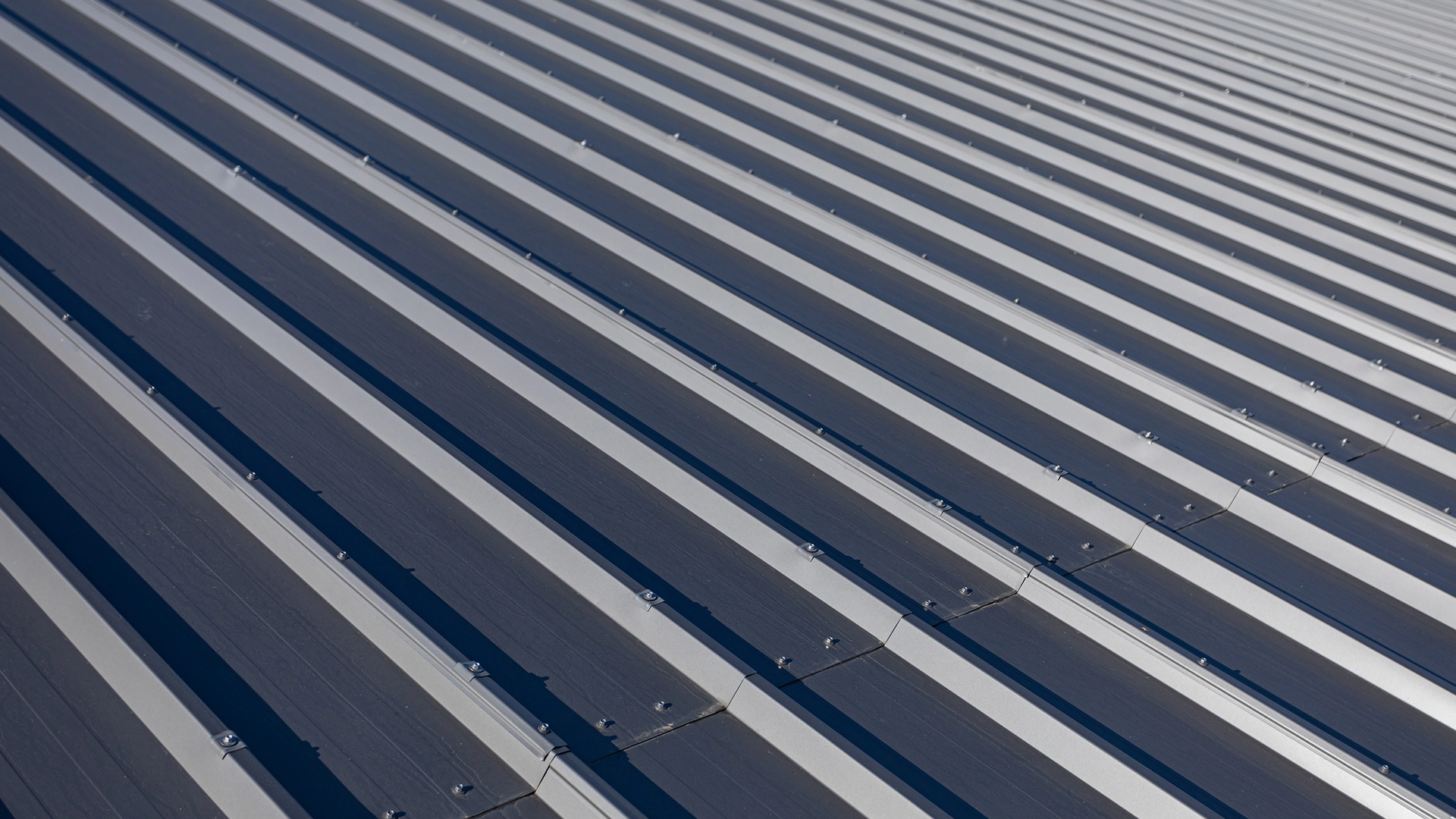

Insulation build-ups
Twin-skin build-ups incorporating mineral wool insulation can be specified to achieve the thermal performance required for the building.
Profile & finish options
Available in a range of profiles, colours, and finishes to respond to architectural and planning requirements.
System Components
Trapezoidal profile system available in single skin or twin skin insulated configurations for complete building envelope protection.

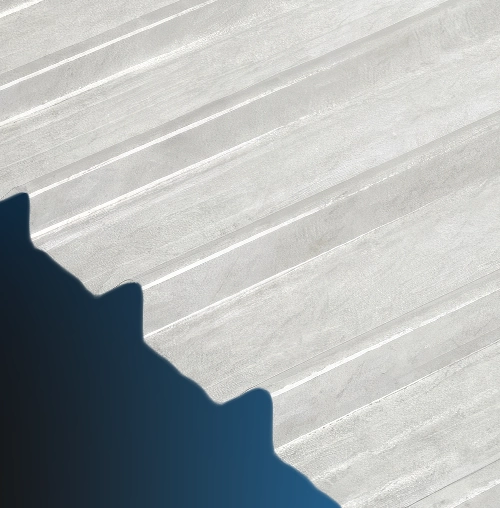

R-MER CLAD Trapezoidal Metal Cladding System Profile

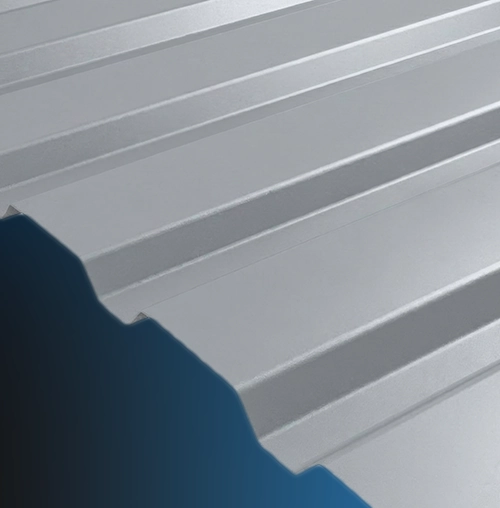

Trapezoidal Metal Sheets
Lightweight trapezoidal steel profiles for roof and wall applications with secure fixing and watertight performance.
- Material: Galvanised steel Z275N
- Profile dimensions: many options available
- Thickness: 0.5mm to 0.7mm
- Fire rating: AA to BS 476-3, BROOF(t4) to EN 13501-5:2005
- Sealing: Butyl seals at sheet laps for watertight integrity
- Minimum pitch: Greater than 5 degrees

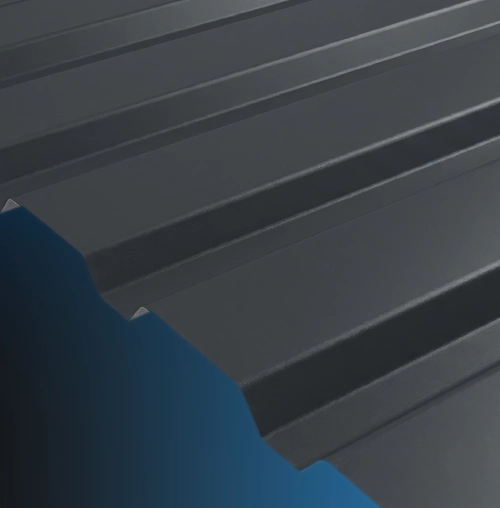

Single Skin System
Uninsulated Configuration
Uninsulated trapezoidal system for industrial and warehouse applications requiring weather protection without thermal insulation.
- Configuration: Single skin (no insulation)
- Construction: Lightweight design reduces structural loading
- Maintenance: Minimal maintenance required
- Performance: Long-term durable weather protection
- Applications: Industrial buildings, warehouses, storage spaces
- Ideal for: Unheated operational and storage buildings

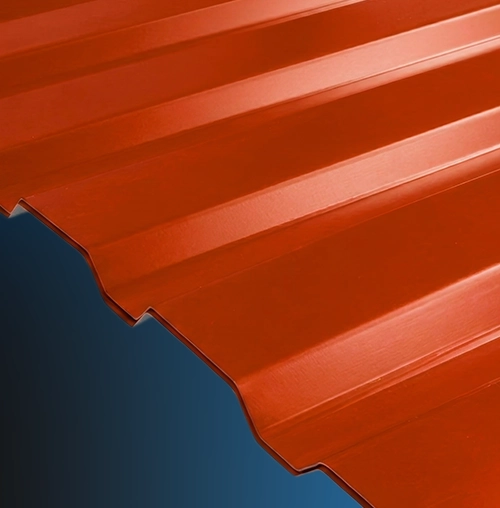

Twin Skin System
Insulated Build-Up
Insulated dual-layer system with bar and bracket framework for enhanced thermal performance in occupied buildings.
- Configuration: Inner and outer profiles with insulation void between
- Insulation options: Mineral quilt insulation
- Support system: Bar and bracket framework
- Thermal bridging: Reduced due bar and bracket technology
- Applications: Commercial offices, retail units, residential buildings
- Benefits: Enhanced thermal efficiency for occupied spaces

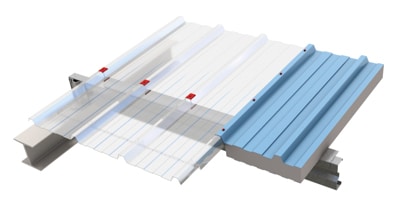

GRP Rooflights
Natural Daylighting System
Glass reinforced polyester rooflights providing natural daylight transmission with fire-rated performance and recyclable profiles.
- Material: GRP (Glass Reinforced Polyester)
- Compatibility: Single skin and twin skin systems
- Energy efficiency: Reduces artificial lighting and operational costs
- Sustainability: 100% recyclable profiles
- Fire grades: SAB Class 3, SAA Class 1, SAA1 Class 0
Quick Reference
| Specification | Details |
|---|---|
| Profile Type | Trapezoidal (32/167/1000) |
| Profile Height | 32mm |
| Pitch | 167mm |
| Cover Width | 1000mm |
| Thickness | 0.5mm, 0.7mm |
| Material | Galvanised steel grade Z275N |
| Finish | HP200 Plastisol or Polyester |
| Minimum Pitch | 5 degrees |
| Span | Up to 2.8m (single, double, or multi-span) |
| Fire Rating | AA to BS 476-3, BROOF(t4) EN 13501-5:2005 |
| Configuration | Single skin or twin skin insulated |
| Guarantee Period | Up to 20 years |
| Recyclability | 100% |
Need technical specification advice?
Your local Garland UK Technical Manager can advise on system selection, detailing, and project-specific requirements to help develop the appropriate R-MER specification.
